实现自己的HAL2 HAL helloworld 之HAL层代码的编写

编写目标

• 编写一个实现简单功能（加法运算）的HAL代码，不涉及驱动操作
• 编译通过,并打包到vendor.img中

编写头文件helloworld.h

• 在Z:\itop-3399_8.1\hardware\libhardware\include\hardware 下创建helloworld.h

#define ANDROID_HELLOWORLD_INTERFACE_H
#include <hardware/hardware.h>

__BEGIN_DECLS

//定义模块ID
#define HELLOWORLD_HARDWARE_MODULE_ID "helloworld"

//硬件模块结构

struct helloworld_module_t
{
    struct hw_module_t common;
    char * description;
    int methodsNum;
};

//硬件接口结构体

struct helloworld_device_t
{
    struct  hw_device_t common;
    int (*helloworld_add) (struct helloworld_device_t *dev, int a , int b, int *c);
};

__END_DECLS

编写helloworld.c

• 在系统源码的这个路径 Z:\itop-3399_8.1\hardware\libhardware\modules ，下新建helloworld 文件夹
• 在helloworld文件夹下创建helloworld.c文件 代码

#define LOG_TAG "HelloWorld"

#include <hardware/hardware.h>
#include <malloc.h>
#include <fcntl.h>
#include <errno.h>
#include <cutils/log.h>
#include <hardware/helloworld.h>

#define MODULE_NAME "helloworld"
#define MODULE_DES "HelloWorld : Implement Add function"
#define MODULE_AUTHOR "963416867@qq.com"

static int helloworld_open(const struct hw_module_t* module, const char* id, struct hw_device_t** device);
static int helloworld_close(struct hw_device_t* device);
static int helloworld_add(struct helloworld_device_t *dev, int a , int b, int *c);
static int  helloworld_open(const struct hw_module_t* module, const char* id, struct hw_device_t** device){

    struct helloworld_device_t *dev;

    dev = (struct helloworld_device_t *)malloc(sizeof(*dev));
    if(!dev){
        ALOGE("Helloworld open: faild to alloc device space");
        return -EFAULT;
    }

    memset(dev, 0, sizeof(*dev));
    dev->common.tag = HARDWARE_MODULE_TAG;
    dev->common.version = 0;
    dev->common.module = module;
    dev->common.close = helloworld_close;
    dev->helloworld_add = helloworld_add;

    * device = &(dev->common);
    ALOGI("helloworld open: driver file successfully");

    return 0;
    }

static struct  hw_module_methods_t helloworld_module_methods_t = {
    .open = helloworld_open
};

//module struct  注意这里必须是 HAL_MODULE_INFO_SYM 变量名

struct helloworld_module_t HAL_MODULE_INFO_SYM = {

    .common = {
        .tag = HARDWARE_MODULE_TAG,
        .module_api_version = 1,
        .hal_api_version = 0,
        .id = HELLOWORLD_HARDWARE_MODULE_ID,
        .name = MODULE_NAME,
        .author = MODULE_AUTHOR,
        .methods = &helloworld_module_methods_t
    },

    .description = MODULE_DES,
    .methodsNum = 3

};

static int helloworld_close(struct hw_device_t* device){
    struct helloworld_device_t* helloworld_device= (struct helloworld_device_t *)device;
    if(helloworld_device){
        free(helloworld_device);
    }

    return 0;
}

static int helloworld_add(struct helloworld_device_t *dev, int a , int b, int *c){
    ALOGI("helloworld add: success %d + %d", a, b);
    *c = a + b;
    return 0;
}

编写Android.mk 编译文件

• Android.mk

# Copyright (C) 2008 The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

LOCAL_PATH := $(call my-dir)

# HAL module implemenation stored in
# hw/<OVERLAY_HARDWARE_MODULE_ID>.<ro.product.board>.so
include $(CLEAR_VARS)

#用于打印的库
LOCAL_LDLIBS := -llog

LOCAL_MODULE_RELATIVE_PATH := hw
LOCAL_PROPRIETARY_MODULE := true
LOCAL_SRC_FILES := helloworld.c
LOCAL_HEADER_LIBRARIES := libhardware_headers
LOCAL_MODULE := helloworld.default
LOCAL_CFLAGS:= -DLOG_TAG=\"helloworld\"
LOCAL_MODULE_TAGS := optional
include $(BUILD_SHARED_LIBRARY)

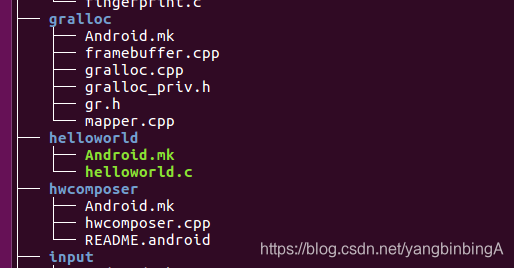

• 此时的 Z:\itop-3399_8.1\hardware\libhardware\modules\helloworld 目录结构

编译自己写的helloworld hal

• 在编译这个模块前先将系统源码编译通过，为编译系统源码会生成好多工具，这些工具可以用来单独模块编译
• 配置执行文件

source build//envsetup.sh

• 选择在什么环境编译

lunch

• 编译自己编写的模块

mmm hardware/libhardware/modules/helloworld/

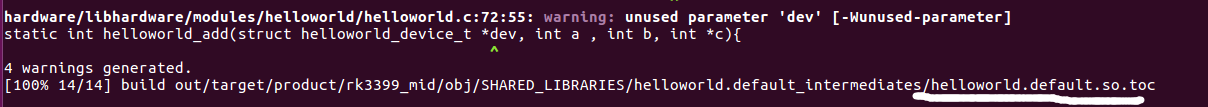

• 编译成功后会生成一个.so 文件
• 我这里生成的是helloworld.default.so 文件
• helloworld.default.so 该文件在 Z:\itop-3399_8.1\out\target\product\rk3399_mid\vendor\lib64\hw 目录
• 文件在vendor\lib64 目录 说明 该.so 文件最后会打包在vendor.img 镜像中
• 打包vendor.img 镜像

make vendorimage 将vendor.img 刷入设备中，查看设备中的helloworld.default.so（需要root）

//进入设备
adb shell
//获取root权限
su

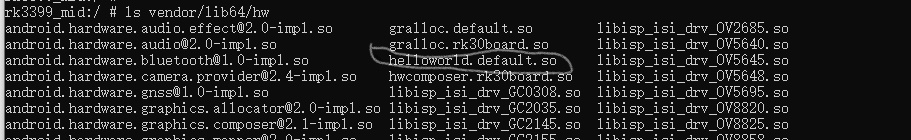

• 在设备中查看我们的.so

ls vendor/lib64/hw

如图

系统生成的.so 库

• 系统生成的.so库可能会出现在 system.img 和 vendor.img 中
• 看编译后生成的.so 在那个目录

1. 如果在 XX/XX/vendor/lib64,lib/ 中那就是上面的编译模式
2. 如果在 XX/XX/syetem/lib64,lib/ 中那就安装下面的方式打包镜像

• 打包system.img 镜像

make snod
